DENKO THILAWA OIL STORAGE TANK TERMINAL PROJECT

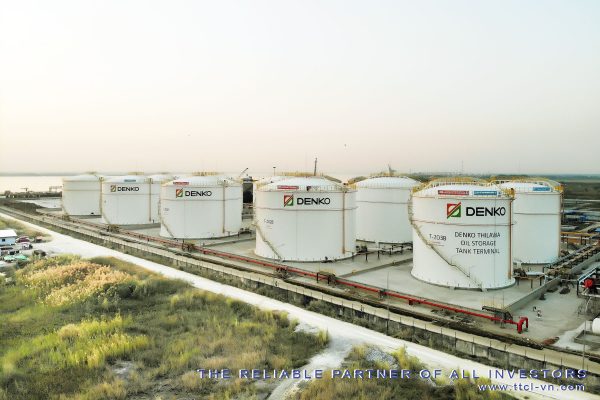

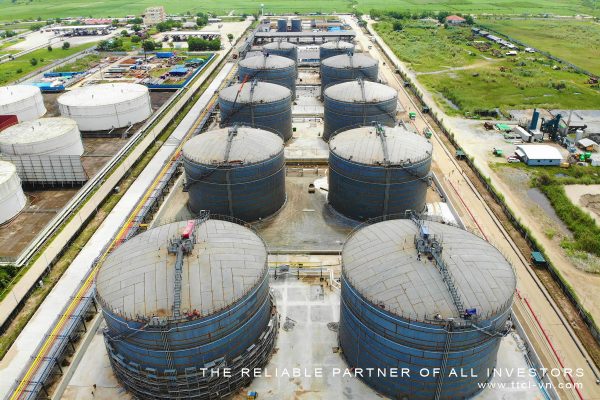

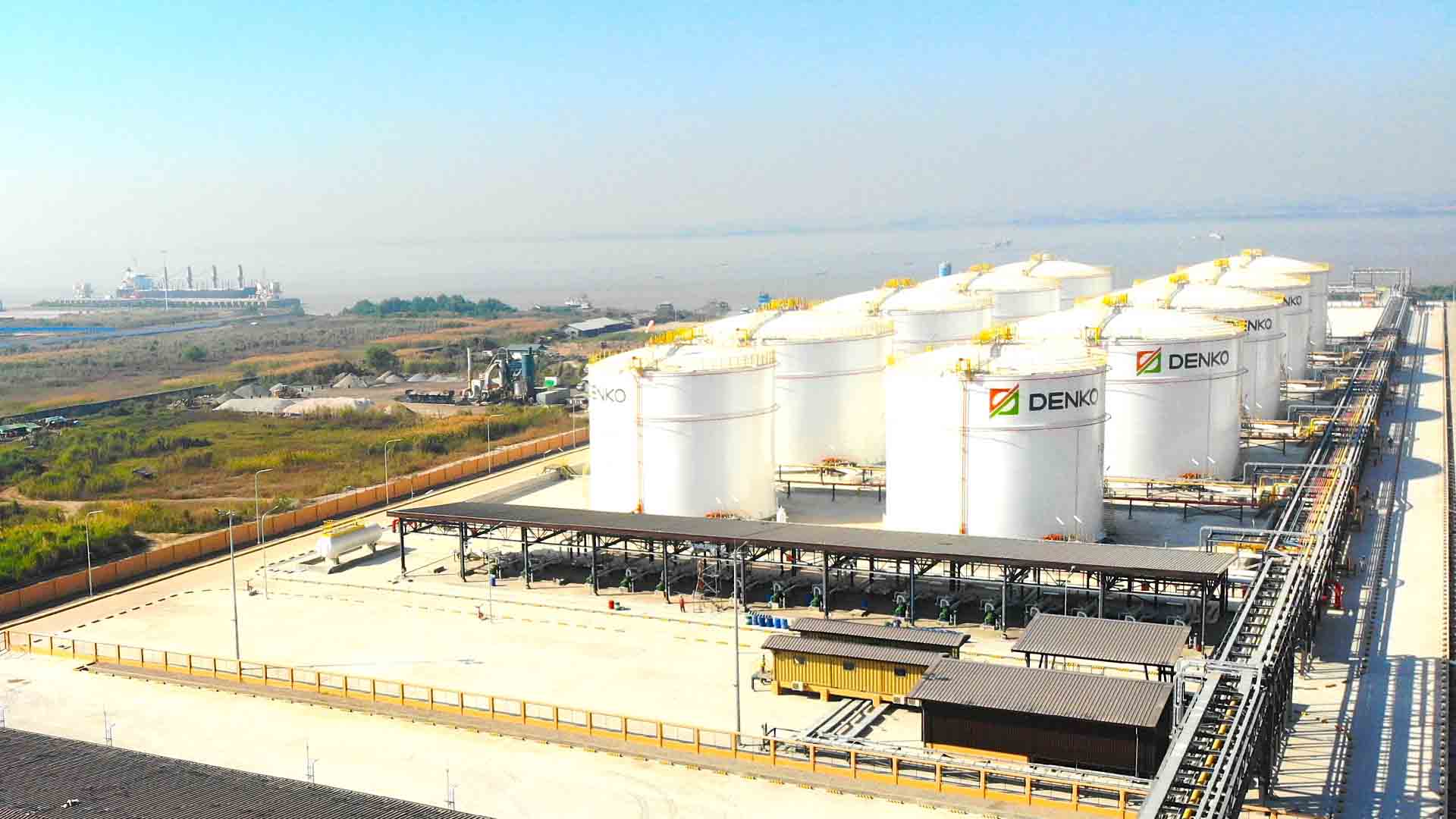

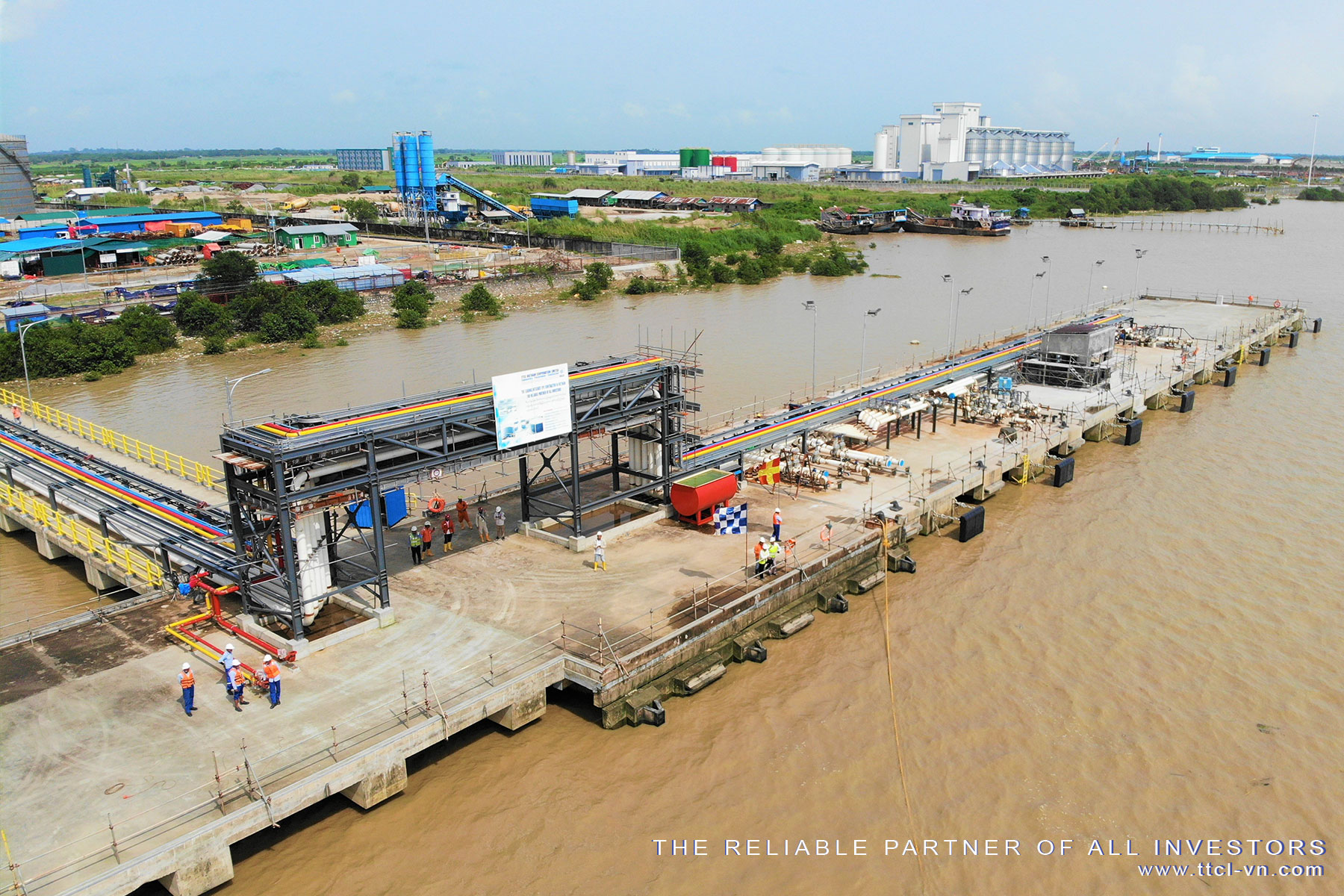

Main Process System: Terminal Area (10 tanks, with capacity of 135,000 m3). Unloading system from Jetty to Terminal and Barge loading from terminal to ship, Truck loading area (16 loading bays), Additive injection and Dye coloring System Utilities, facilities system include : Compressed Air, water supply, oilly water collection and treatment, Instrumentation system included the SCADA + PLC, ESD system, Fire and Gas system, Tank Gauging system, Metering skid and Batch control, field instrument, Electrical System included: Medium Voltage System (33kV), Transformer, LV Switchgear, MCC, Distribution Panel, UPS, Diesel Generator, Cable, cable tray, …LV System: Lighting system, Grounding and Lightning system, Telecommunication, LAN, CCTV, Paging System, Fire fighting system and Fire Alarm Other infrastructure of terminal such as tank foundation, underground water pond, pipe rack and pipe bridge, road & paving, drainage system, fence and gate.
